Eckstein Medical Research Building - Room 84C

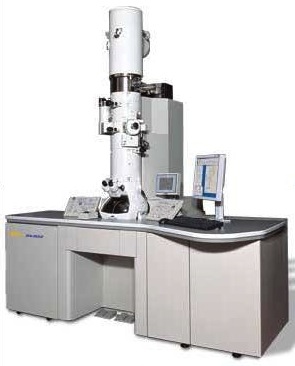

Instrument Specifications
- 200 kV maximum accelerating voltage
- Electron Gun Assembly: Schottky FEG Emission-Zr/W
- Specimen Anti-contamination Trap
- High Tilt Analytical Pole Piece (HTP)
- Point-to-point resolution: 0.25 nm, stage tilt angle: +/-45 degrees for X, +/-30 degrees for Y tilt axes, EDS solid angle: 0.13 sr
- Cryoholder
- Double tilt Holder (Low background)
- STEM (Scaning Transmission Electron Microscope) Images
- Image Resolution: 1.5 nm with HTP (Bright Field STEM at 200 kV)
- Low Mag: 100x to 15,000x
- High Mag: 20,000x to 15,000,000x
- JEOL bright field detector
- Gatan high angle annular dark field (HAADF) detector
- Gatan Tridiem post column parallel detection EELS with 2k x 2k PIXEL ULTRASCAN 1000 CCD CAMERA
- NANOTRACE EDS DETECTOR WITH NORVAR WINDOW for detection of light elements, 30 mm straight Si(Li) crystal
- 138 eV resolution
